PRODUCTS Coolinside full-chain liquid cooling solution Quick Disconnect
Quick Disconnect
Enable fast connection/disconnection of pipes in the liquid cooling system
PARAMETERS

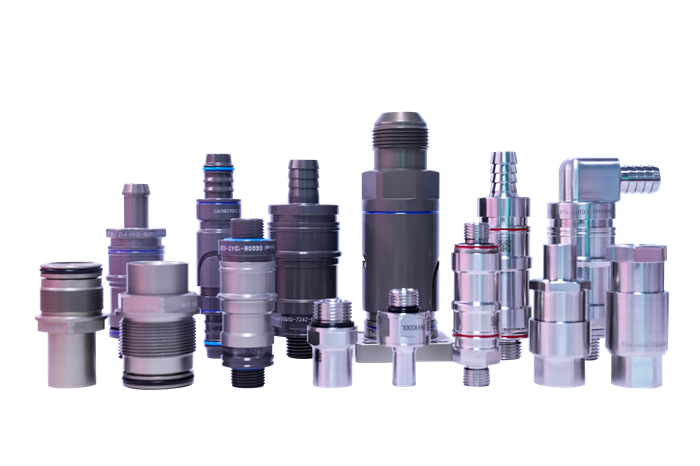

Overview
Fast and easy connection/disconnection without leakage

Envicool’s multiple product lines of quick disconnect are suitable for different scenarios such as information technology and data center servers, medical and industrial equipment, aerospace and rail transit

Overview Fast and easy connection/disconnection without leakage Envicool’s multiple product lines of
Features
Secure structure
Secure structure
No leakage during connection and disconnection with super impurity tolerance
Corrosion resistance
Corrosion resistance
The housing material, coating, and sealing ring with strong corrosion resistance are compatible with various fluids such as ethylene glycol solution, deionized water, aviation fuel, antifreeze, refrigerant, etc.
Resilience against vibration and shock
Resilience against vibration and shock
Meet the resilience requirements against vibration and shock during transit by air, vehicle, ship, etc.

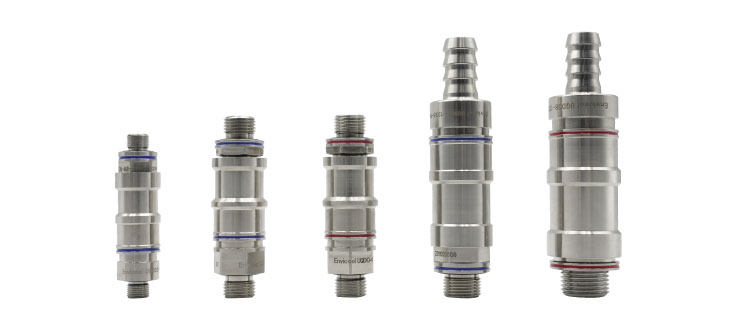

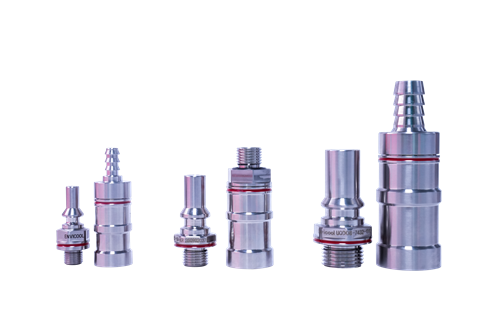

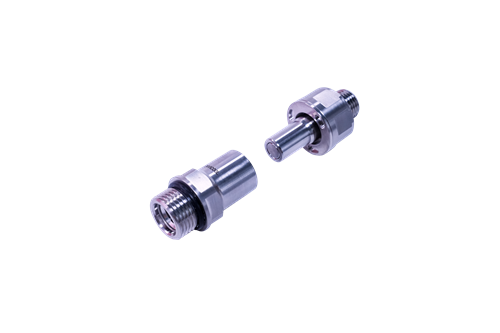

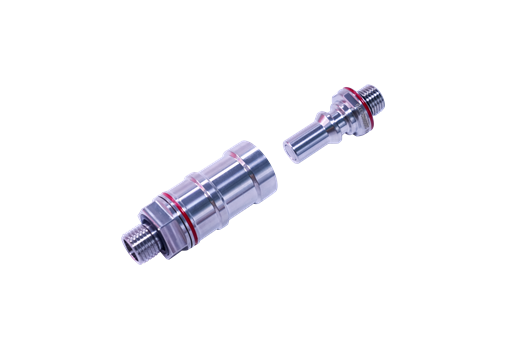

UQD/UQDB Series
Universal quick disconnects

Envicool patented design;

Compatible with OCP UQD/UQDB V1 and V2 standards;

Dry Breaks with direct insertion and auto-locking feature;

High interchangeability: more than 600 hrs testing with 8+ popular QD supplier designs;

Material: SUS316 & SUS316L housing; EPDM Sealing Ring (material customisable).

UQD/UQDB Series Universal quick disconnects Envicool patented design; Compatible with OCP UQD/UQDB V
UQD/UQDB Series Universal quick disconnects Envicool patented design; Compatible with OCP UQD/UQDB V
UQD/UQDB Series Universal quick disconnects Envicool patented design; Compatible with OCP UQD/UQDB V

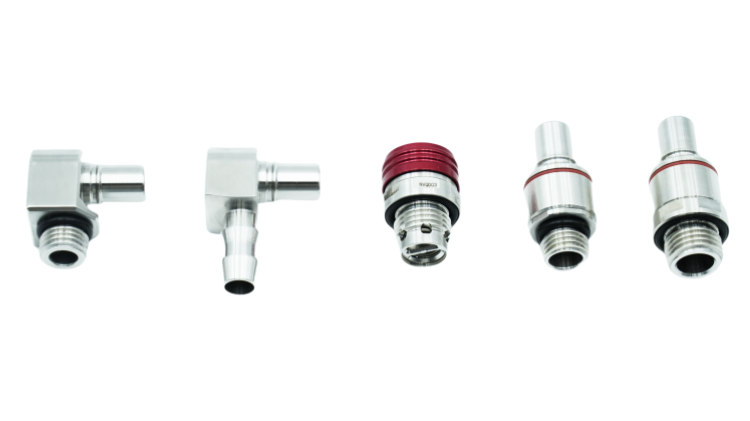

MQD/MQDB Series
Multi quick disconnect

MQD/MQDB 02/03/04&MQDB04-1 available now according to V10 spec;

Dry Breaks with direct insertion and auto-locking feature;

High interchangeability: more than 600 hrs testing with 8+ popular QD supplier designs;

Suitable for in-chassis application: 40% smaller than UQD series with similar Cv value;

Material: SUS316 & SUS316L housing; EPDM Sealing Ring (material customisable);

Customised for EPDM hoses and stainless-steel tubes connection;

High visible colour coding.

MQD/MQDB Series Multi quick disconnect MQD/MQDB 02/03/04&MQDB04-1 available now according to V10 spe

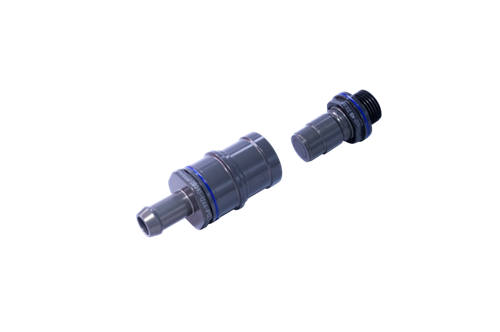

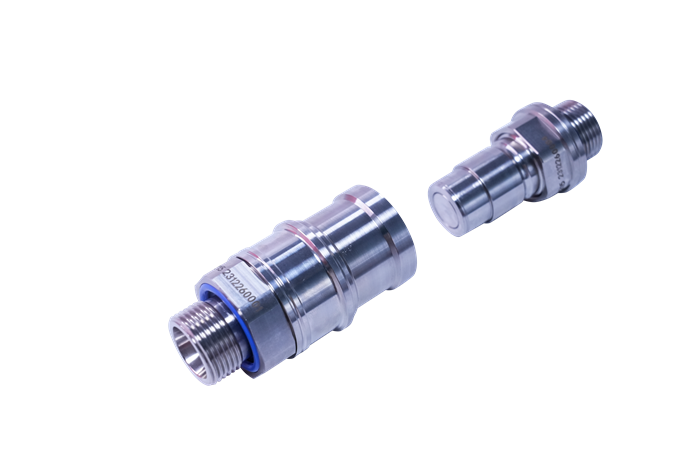

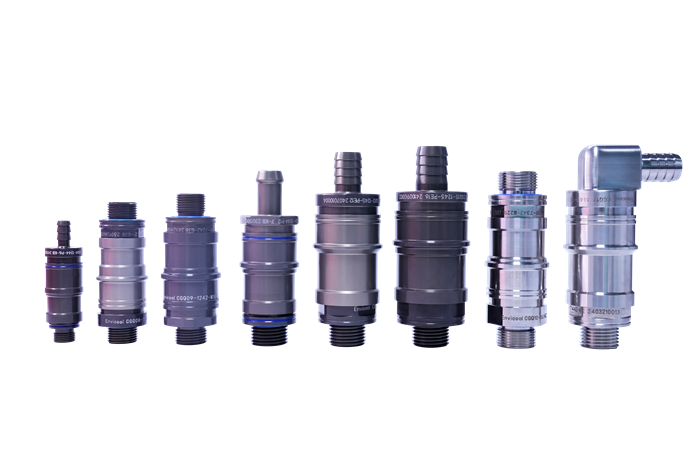

CGQ Series
Envicool semi-automatic quick disconnects

Stainless steel ball joints, solid and reliable;

Direct insertion to connect with automatic locking;

Housing: aluminum alloy, stainless steel.

CGQ Series Envicool semi-automatic quick disconnects Stainless steel ball joints, solid and reliable
CGQ Series Envicool semi-automatic quick disconnects Stainless steel ball joints, solid and reliable
CGQ Series Envicool semi-automatic quick disconnects Stainless steel ball joints, solid and reliable

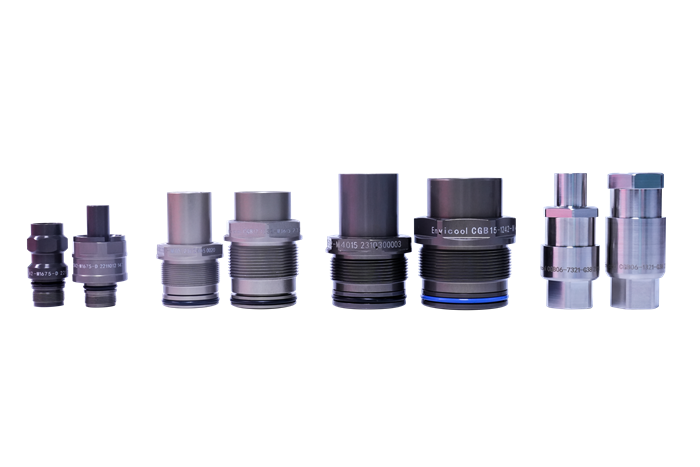

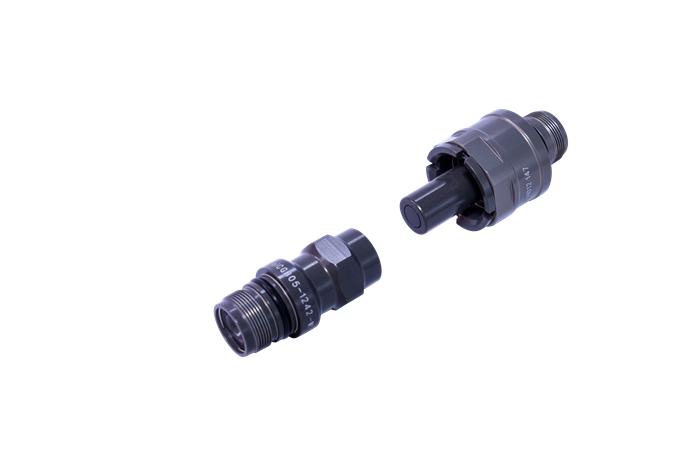

CGB Series
Envicool floating blind-mate quick disconnects

Locked through external fastener;

± 1.5 mm misalignment allowed;

Housing: aluminum alloy, stainless steel.

CGB Series Envicool floating blind-mate quick disconnects Locked through external fastener;± 1.5 mm
CGB Series Envicool floating blind-mate quick disconnects Locked through external fastener;± 1.5 mm

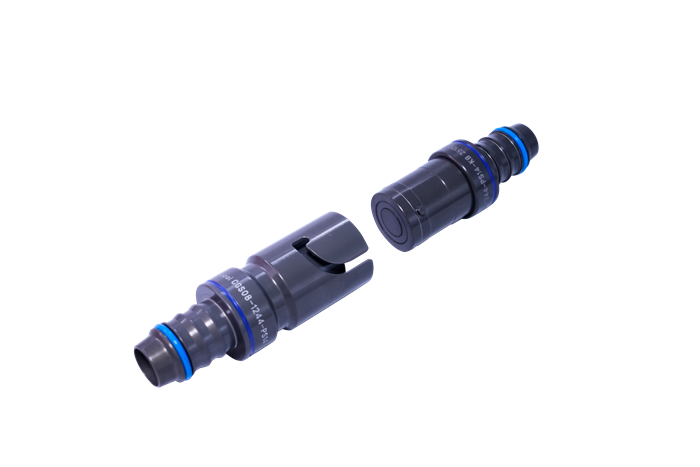

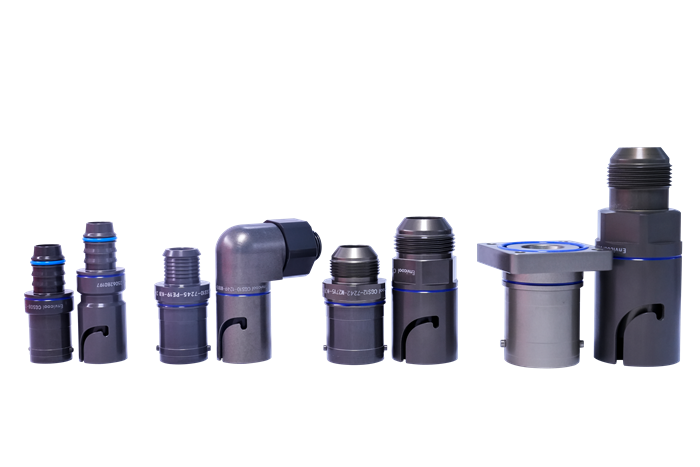

CGS Series
Envicool quick disconnects for liquid cooling applications

Clamp-fastened design to enable anti-vibration and anti-release, suitable for extreme vibration conditions;

Compact structure enables push-to-lock, easy to operate;

Housing: aluminum alloy, stainless steel.

CGS Series Envicool quick disconnects for liquid cooling applications Clamp-fastened design to enabl
CGS Series Envicool quick disconnects for liquid cooling applications Clamp-fastened design to enabl
For more info., please contact

1.

marketing02@envicool.com

Bruce Liu

Fremont, CA, US / Shenzhen, China

2.

marketing01@envicool.com

Ning Liu

Fremont, CA, US / Shenzhen, China

PARAMETERS
download
References
Coolinside Full-chain Liquid Cooling Solution
Coolinside Full-chain Liquid Cooling Solution
Based on the features of servers including high heat density, high energy consumption, and security compatibility, we have conducted in-depth R&D and design. Featuring full chain independence, our solution integrates design, manufacture, delivery, and after-sales to achieve full life cycle services.
